Dayton, OH (November 2018) — The high-speed, six-axis MPX1150, MPX1950 and MPX2600 robots have been added to Yaskawa Motoman’s paint robot line. These models create smooth, consistent finishes for a variety of painting and dispensing applications.

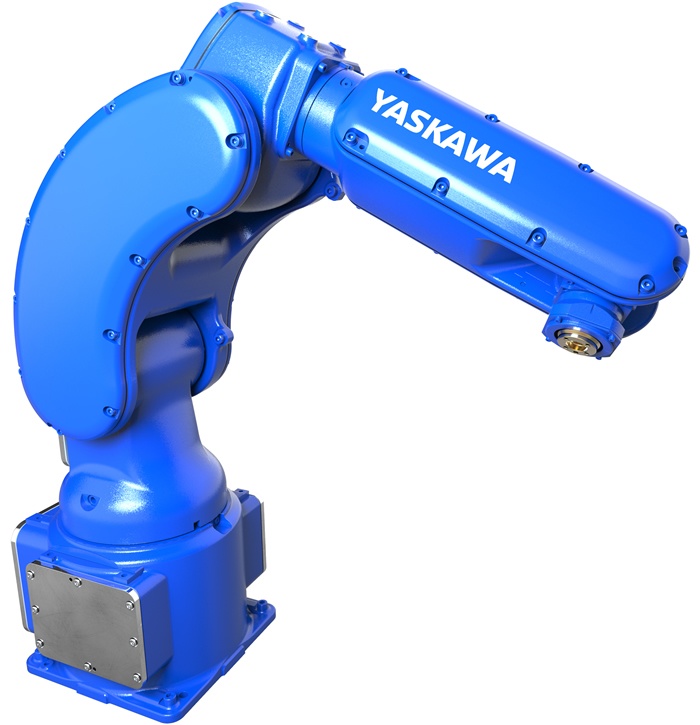

Ideal for painting smaller components, the compact
MPX1150 robot has a straight wrist with 5 kg payload capacity. It is well-suited for mounting a variety of spray guns and small bells. Its small footprint and slim arm design allow for minimum installation space. An optional location (right, left or bottom) for manipulator cable connection reduces interference with walls. The MPX1150 robot features a 727 mm horizontal reach, 1,290 mm vertical reach and ±0.02 mm repeatability.

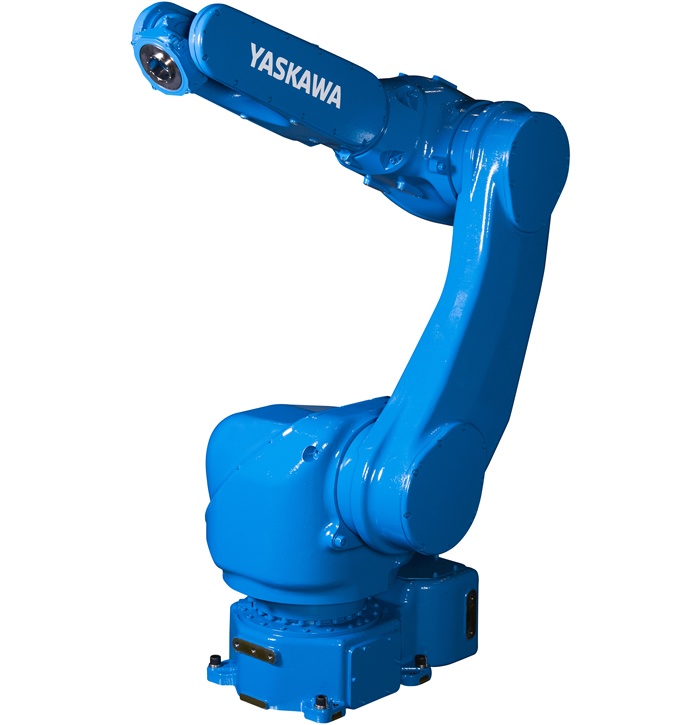

With its small footprint and slim arm design, the compact
MPX1950 allows for minimum installation space and is perfect for painting small- to medium-sized components. It also has an optional location (right, left or bottom) for manipulator cable connection that reduces interference with walls. Its 7 kg wrist payload enables mounting an array of spray guns and small bells. The MPX1950 features a 1,450 mm horizontal reach, 2,730 mm vertical reach and ±0.15 mm repeatability.

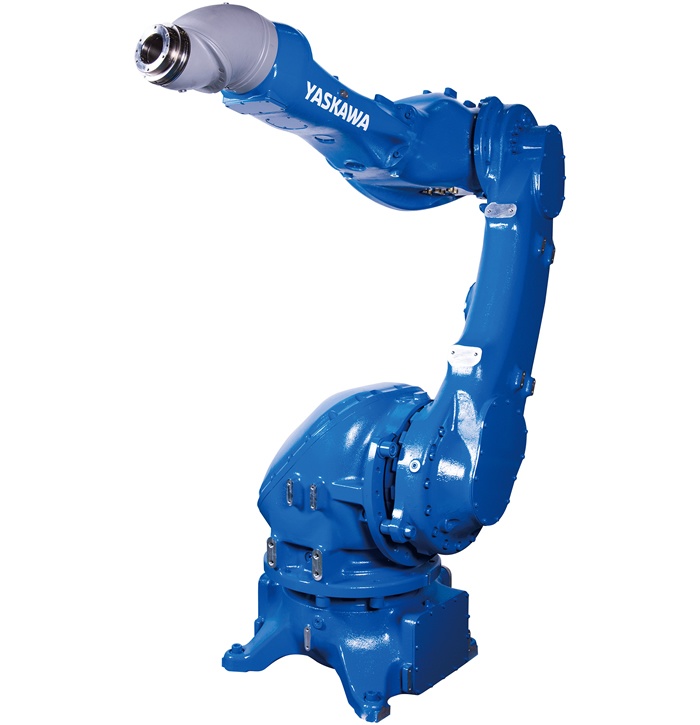

Ideal for automotive components and other industrial applications, the
MPX2600 robot features a streamlined, upper arm equipped with mounting points to optimize hose routing. Its 15 kg wrist payload allows for mounting a variety of spray guns and large bells, while the large 70 mm hollow wrist diameter helps prevent paint and air tube interference.
The MPX2600 robot features a 2,000 mm horizontal reach, 3,643 mm vertical reach and ±0.2 mm repeatability.
These models offer reduced interference work envelopes and can be installed close to workpieces for efficient use of floorspace. Each robot can be floor-, wall- or ceiling-mounted for layout flexibility.
The MPX1150 robot, MPX1950 robot, MPX2600 robot and DX200-FM controller feature Factory Mutual (FM) approval for use in Class I, Division 1 hazardous environments. An intrinsically safe pendant is available as an option.
The DX200-FM controller includes application-specific software for paint applications and coordinates operation of the robot and painting devices, including spray gun, color changer and gear pump. The controller supports standard networks (EtherNet, EtherNet IP, CC-Link and DeviceNet), enabling connection to paint equipment controllers and production line controllers.
The DX200-FM is available with Category 3 Performance Level d (PLd) Functional Safety Unit (FSU), which supports safety-rated speed control, safety-rated soft axis and space limiting, and safety-rated monitor stop. In addition to enabling safe operation in smaller spray booths with adjacent manual operations, these safety functions can be utilized to save costs and reduce floorspace requirements.
With a large global install base, backed by Yaskawa’s experience and reliability, the MPX-series line of robots offers exceptional performance with proven efficiency.
