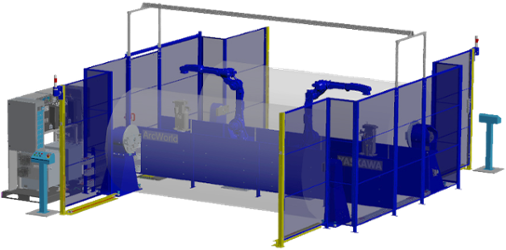

ArcWorld 2000

When it comes to large parts and heavy-deposition welding, only a truly heavy-duty solution will suffice. Our large ArcWorld® robotic workcells deliver maximum power for performance on a whole new scale, without sacrificing safety features and ease of integration that characterize our smaller workcells.


Power & Performance

Able to handle parts up to 5 m in size and total payloads up to 6,300 kg, ArcWorld 2000 workcells are ideal for the labor intensive jobs involving large parts or heavy deposition.

Ease of Integration

Big doesn't have to mean complicated. ArcWorld workcells arrive at your facility ready to weld. They are pre-assembled on a common base for quick setup and relocation.

Modular & Scalable

Grow your productivity without expanding your space. ArcWorld 2000 scales easily from a single station to a two-robot dual station - with multiple configurations in between that help you adapt to changing demands.


Workcell Design

  • Customizable workcell designed to deliver maximum performance for larger, heavier part production.

  • Two-station configuration enables simultaneous welding on one station, while loading/unloading on the opposite station.

  • Functional Safety Unit (FSU) ensures robot operation in areas clear of operator presence.

  • Total safety environment complies with ANSI/RIA R15.06-2012 and relevant ISO and CSA safety standards.

Equipment Included

  • One or two AR2010 or AR3120 Motoman® high-speed arc welding robots for improved throughput and quality.

  • Compact YRC controller utilizes the lightweight standard teach pendant with intuitive programming.

  • Built-in wireways provide thorough cable management for added safety, cable protection and workcell accessibility for cleaning and maintenance.

  • Variety of adaptive welding sensors and solutions available.

Workpiece Capacity

  • Tooling spans can be 3, 4 or 5 meters with a variety of positioners to support varying part sizes.

  • Servo-driven headstock and tailstock support payloads up to 6,300 kg.

  • One- or two-station configurations can be designed with a blank station, allowing installation of end user supplied fixturing.

  • MotoMount fixture mounting system simplifies tooling and reduces stress on positioner bearings.

  • Positioner jogging available at operator station to aid loading and unloading of parts.


Creating an ArcWorld

Check out how much time, effort and precision goes into making each ArcWorld.

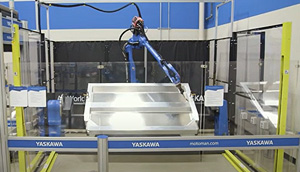

ArcWorld in Action

Watch how operators can remove and load parts in safety, while robots expertly weld.

Which ArcWorld?

Which ArcWorld is Right for You?

ArcWorlds reduce cost, engineering and delivery time.
Learn More >>
