ArcWorld 6000

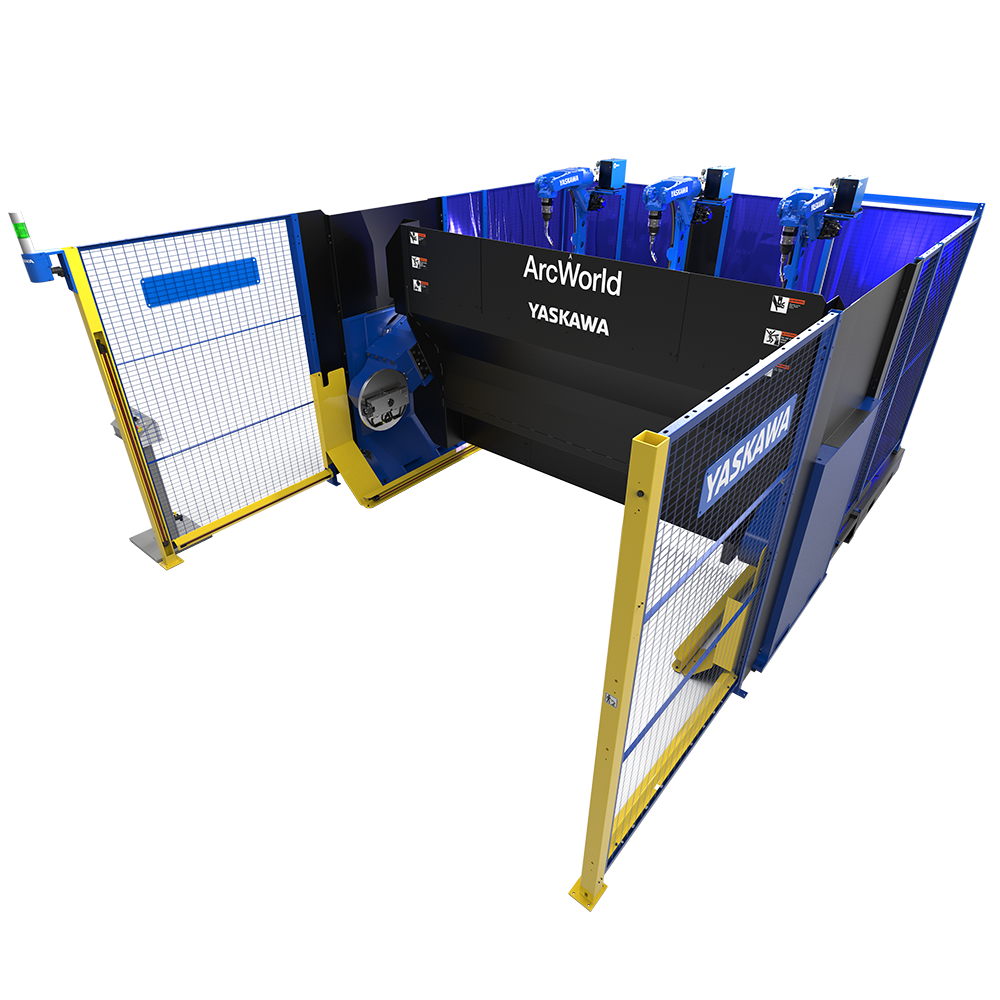

Automation means speed and efficiency, and our ArcWorld® 6000 maximizes both wiith multiple robots, space-saving indexing positioners, and coordinated motion between the robot and positioned part. Built for the most demanding production enviroments, the ArcWorld 6000 will have your medium and larger parts processed with incredible productivity and quality.

Highlights

Ultimate in Automation

Indexing ferris wheel offers the smallest footprint and fastest cycle time, while offering coordinated motion and easy tooling swaps in a maintenance-free postioner design.

HyperProductivity®

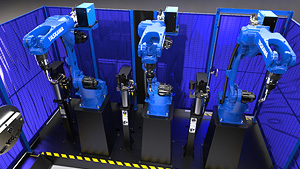

Accommodates up to three AR1440 or AR2010 robots for maximum arcs on in a efficiently-sized workcell to give you faster cycle times and more parts produced.

Safety First

All of our ArcWorlds have completed risk assessment and meet or exceed all RIA and ANSI requirements to keep your employees safe and OSHA satisfied.

Features

Workcell Design

  • Customizable workcells that are intended for medium- to large-sized parts or large quantity production runs, and offer overhead crane access.

  • Controller(s), power source(s), robot(s) and auxiliary equipment ship on the same base, reducing cable connections and installation time.

  • Enhanced safeguarding, including Functional Safety Unit (FSU) is fully compliant with latest robot safety standard (ANSI/RIA R15.06-2012).

  • Interlocked hinged door on rear of cell provides safe and easy programming, and maintenance access.

  • Dedicated wire barrel locations help reduce overall cell footprint.

Equipment Included

  • Twist-lock connectors are included on all interconnecting cables.

  • Up to three AR1440 or AR2010 robots can be combined for HyperProductivity.

  • Optional area scanner provides in-cell and under-positioner safety.

  • Optional roll-up door reduces workcell footprint.

  • Coordinated motion technology allows multiple robots to be synchronized with the positioner and other external axes.

  • Variety of adaptive welding sensors and solutions available.

Workpiece Capacity

  • RM2-750 and RM2-1275 offer a 750-kg and 1275-kg payload capacity (respectively) per side.

  • 2.0 or 3.0 meter tooling span with up to 1.3-m tooling diameter (1.6 m with extended arm option).

  • Ferris wheel positioners provide infinite part positioning, enabling the weld joint to be kept in a gravity-neutral welding plane, improving weld quality.

  • Sealed positioner drives and SGMA7 servo motors minimize required maintenance.

  • Patented MotoMount™ fixture mounting system facilitates fixture changes and extends life by reducing stresses in bearings.

  • Reduced cycle time due to fast overhead sweep, comfortable load height and optimal programming/ processing position.



Creating an ArcWorld

Check out how much time, effort and precision goes into making each ArcWorld.

ArcWorld in Action

Watch how operators can remove and load parts in safety, while robots expertly weld.

Which ArcWorld?

Which ArcWorld is Right for You?

ArcWorlds reduce cost, engineering and delivery time.
Learn More >>


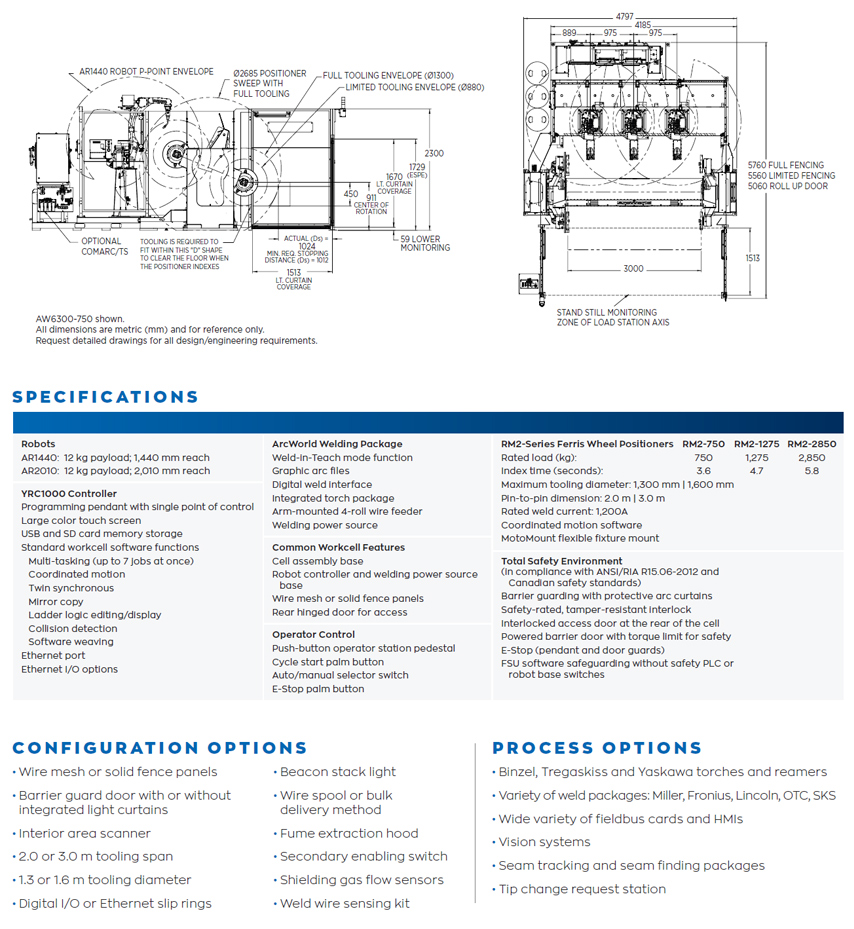

AW1000 spec diagram
