ArcWorld HS

When a compact workcell and robust robot are all you need for small parts, subassemblies or development, our ArcWorld® Hinged Station (HS) meets your space requirements in an extremely cost-effective manner. Its straightforward operation and flexible tooling area make it a welcome addition to any shop.

Highlights

Fast to Deploy

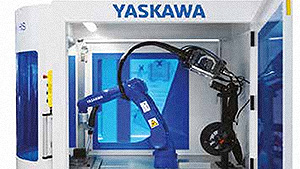

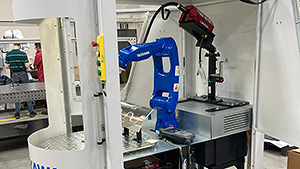

Self-contained package includes robot, workstation, welding equipment, fume mitigation hookup and complete safeguarding that can be deployed anywhere on your floor.

Robust Design

Process parts up to 798 mm x 700 mm x 1000 mm on a perforated workstation table by one of our fastest industrial robots.

Operator Friendly

Simple operator station engages robot to start welding. Both sides fully open for easy programming or maintenance access.

Features

Workcell Design

  • Highly flexible and ultra-compact workcell helps to replace or supplement manual welding.

  • Requires only 1.4 square meters of valuable floorspace.

  • Complete workcell with integrated cable management for easy shipping, installation and setup.

  • Enhanced safeguarding is fully compliant with latest robot safety standards (ANSI/RIA R15.06-2012, ISO and CSA).

Equipment Included

  • A single high-speed Motoman® AR900 arc welding robot welds parts with efficiency and consistent high quality.

  • AR-series robots are backed by the industry’s only two-year torch cable warranty.

  • Choice of Miller® Auto-Continuum™ 350 (sets outside of the cell) or Lincoln Electric Power Wave® R450 (fits inside of the cell) power supply.

  • Welding processes are accessed by Yaskawa's Universal Weldcom Interface directly from the robot programming pendant.

Workpiece Capacity

  • Hinged station (HS) design features a fixture table with a 100 kg payload capacity.

  • Processes parts up to 798 mm x 700 mm x 1000 mm in size.



Fast Setup
Compact ArcWorld workcells can be installed and in full production in about four hours.

ArcWorld in Action

Watch how operators can remove and load parts in safety, while robots expertly weld.

Which ArcWorld?

Which ArcWorld is Right for You?

ArcWorlds reduce cost, engineering and delivery time.
Learn More >>

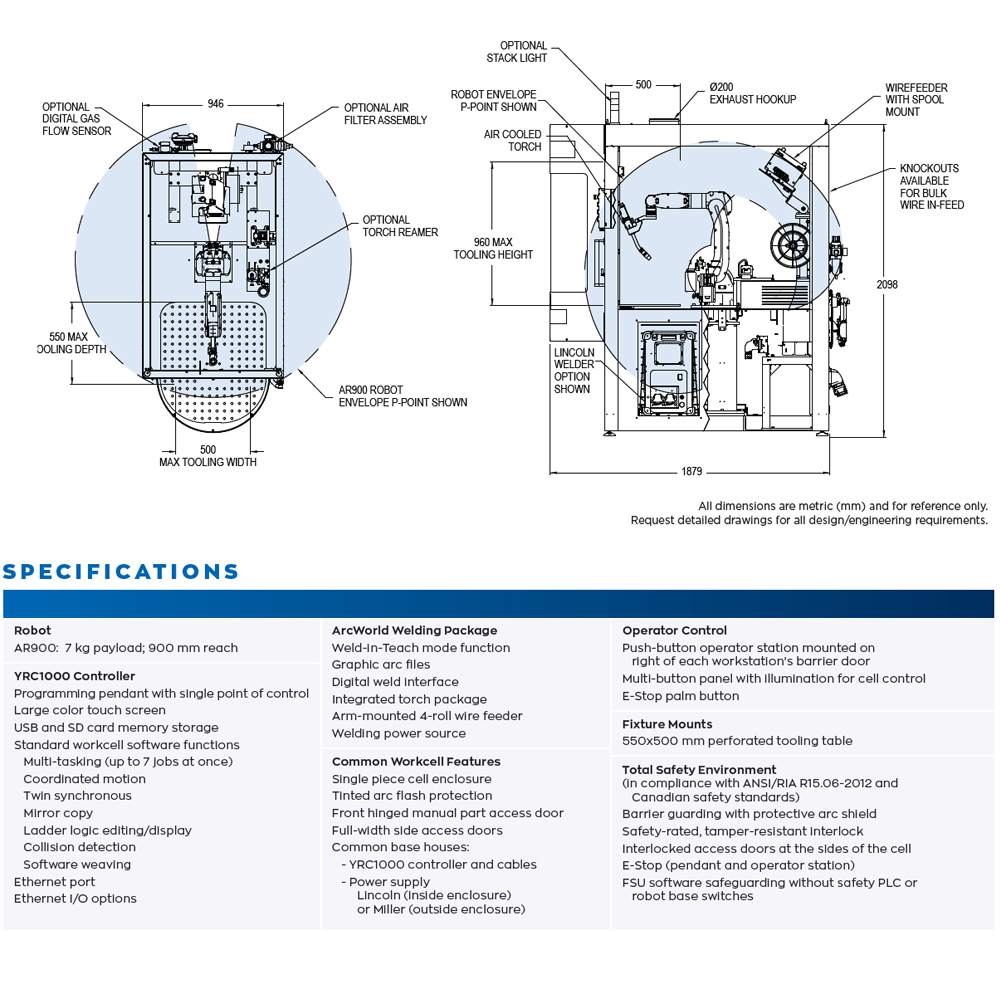

AW1000 spec diagram
