ArcWorld RS

Production parts don’t always require split second cycle time savings and multiple shifts. Our ArcWorld® Rotary Station (RS) gives you dual-sided productivity in a compact, manually rotated workstation. The streamlined design houses robot and weld equipment in a total safety enviroment.

Highlights

Fast to Deploy

Self-contained package includes robot, workstation, welding equipment, fume mitigation hookup and complete safeguarding that can be deployed anywhere on your floor.

Robust Design

Process parts up to 425 mm x 700 mm x 900 mm on a perforated indexing table by one of our fastest industrial robots.

Operator Friendly

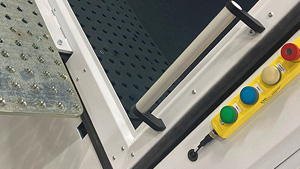

Indexing table glides with manual turning and safely locks into place. Simple operator station engages robot to start welding. Both sides fully open for easy programming or maintenance access.

Features

Workcell Design

  • Highly flexible workcell helps to replace or supplement manual welding.

  • Requires only 2.3 square meters of valuable floorspace.

  • Complete workcell with integrated cable management for easy shipping, installation and setup.

  • Enhanced safeguarding is fully compliant with latest robot safety standards (ANSI/RIA R15.06-2012, ISO and CSA).

Equipment Included

  • A single high-speed Motoman® AR900 arc welding robot welds parts with efficiency and consistent high quality.

  • Choice of Miller® Auto-Continuum 350 (sets outside of the cell) or Lincoln Electric Power Wave® R450 (fits inside of the cell) power supply.

  • Welding processes are accessed by Yaskawa's Universal Weldcom Interface directly from the robot programming pendant.

Workpiece Capacity

  • Rotating station design features two fixture tables with a 100 kg payload capacity per side.

  • Two stations allow one part to be loaded/unloaded while the other part is welded.

  • Processes parts up to 425 mm x 700 mm x 900 mm in size.



Fast Setup
Compact ArcWorld workcells can be installed and in full production in about four hours.

ArcWorld in Action

Watch how operators can remove and load parts in safety, while robots expertly weld.
