Industrial Robots / Press Handling / EPH130RLD
Press Tending
130.0 kg
3474 mm
Horizontal Reach
4151 mm
Vertical Reach
Motoman EPH130RLD industrial robot

These robots feature higher-performance drive systems on the S-, L- and U-axes (Axes 1, 2 and 3) for high duty cycle applications in the press room. The large work envelope allows the robot to be used to tend presses with spacing from 4-7 m.

Download Datasheet  Get Pricing

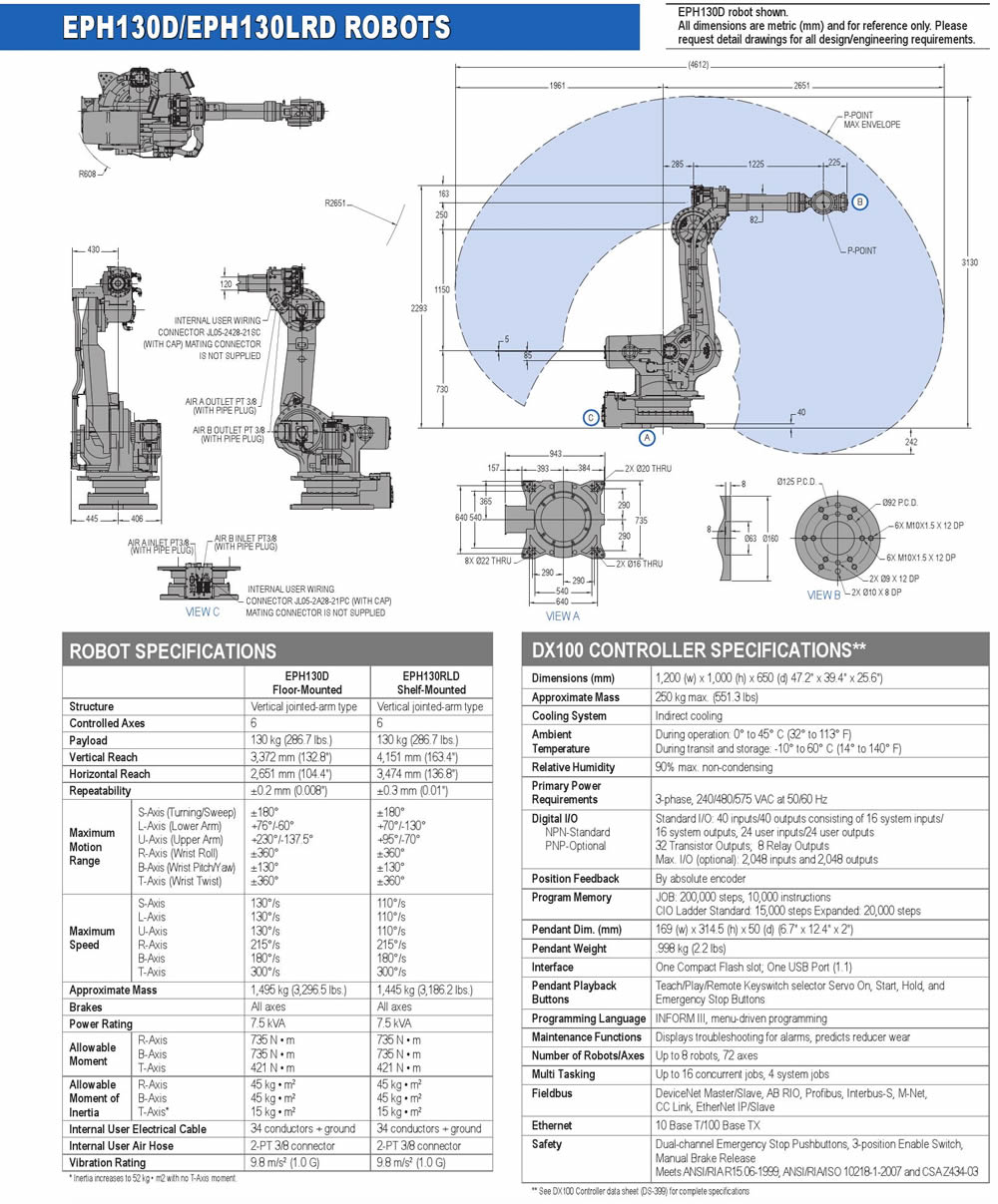

EPH130RLD robot spec diagram
