Industrial Robots / Material Handling / MH24-10
Applications:
Assembly, Dispensing, Machine Tending
10.0 kg
Payload
DX200
Controller
2010 mm
Horizontal Reach
3649 mm
Vertical Reach
Motoman MH24-10 industrial robot

Slim, extended reach MH24-10 robot increases productivity and achieves high performance. Powerful high-speed six-axis robot is ideal for a variety of applications. Hollow upper arm provides optimal cable protection and long life while simplifying programming. A 50 mm clearance through axes 4-6 encloses the cable and protects it from wear, interference or snagging.


Download Datasheet  Get Pricing

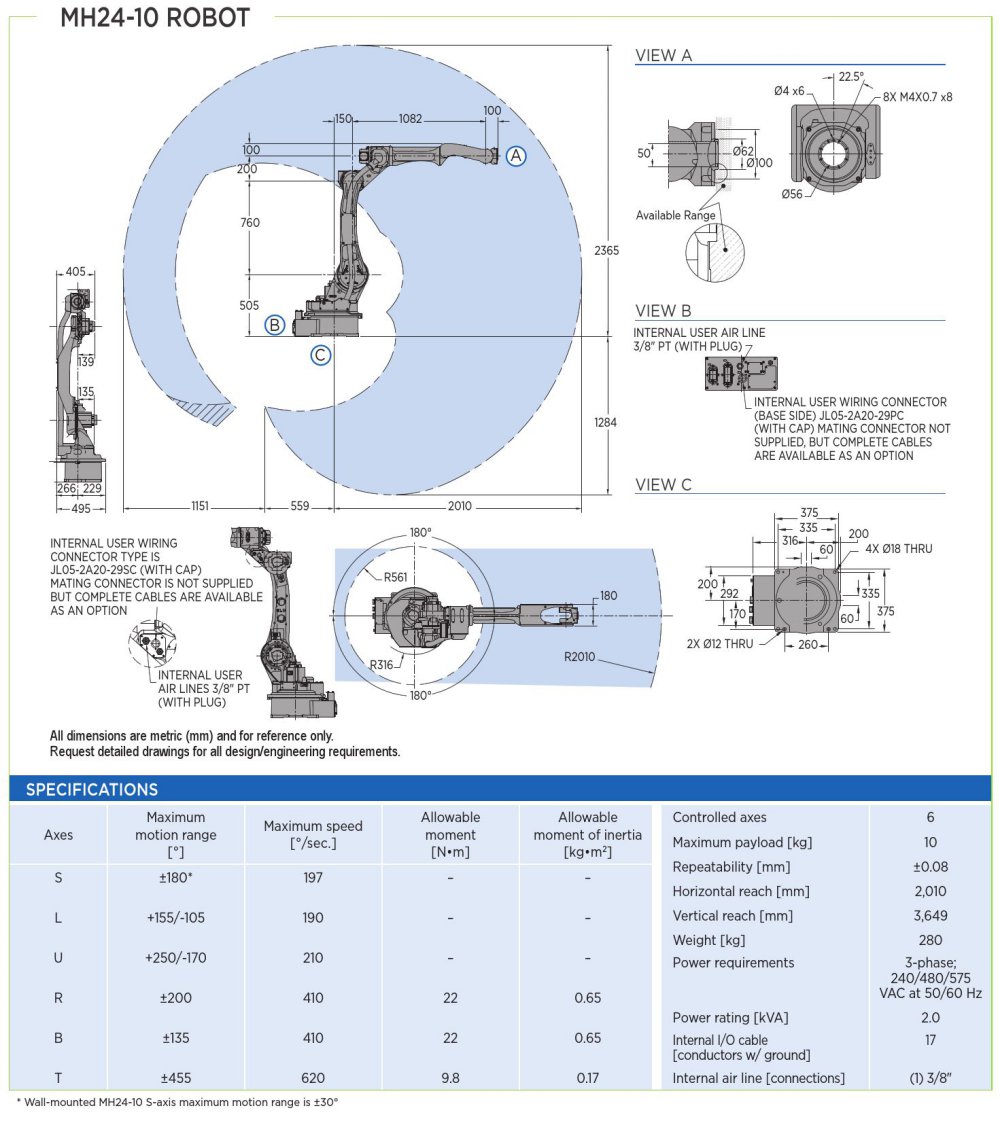

MH24-10 robot spec diagram
