Industrial Robots / Material Handling / MH50 II-20
Dispensing, Machine Tending, Material Removal, Material Cutting/Trimming, Painting, Press Tending
20.0 kg
3106 mm
Horizontal Reach
5585 mm
Vertical Reach
Motoman MH50 II-20 industrial robot

Powerful, high-speed robot with long/extended articulated arm offers superior performance in arc welding, coating, dispensing, material cutting and handling applications. Wide work envelope with small interference zone allows robot to be placed close to workpieces and equipment which reduces required floorspace.

Download Datasheet  Get Pricing

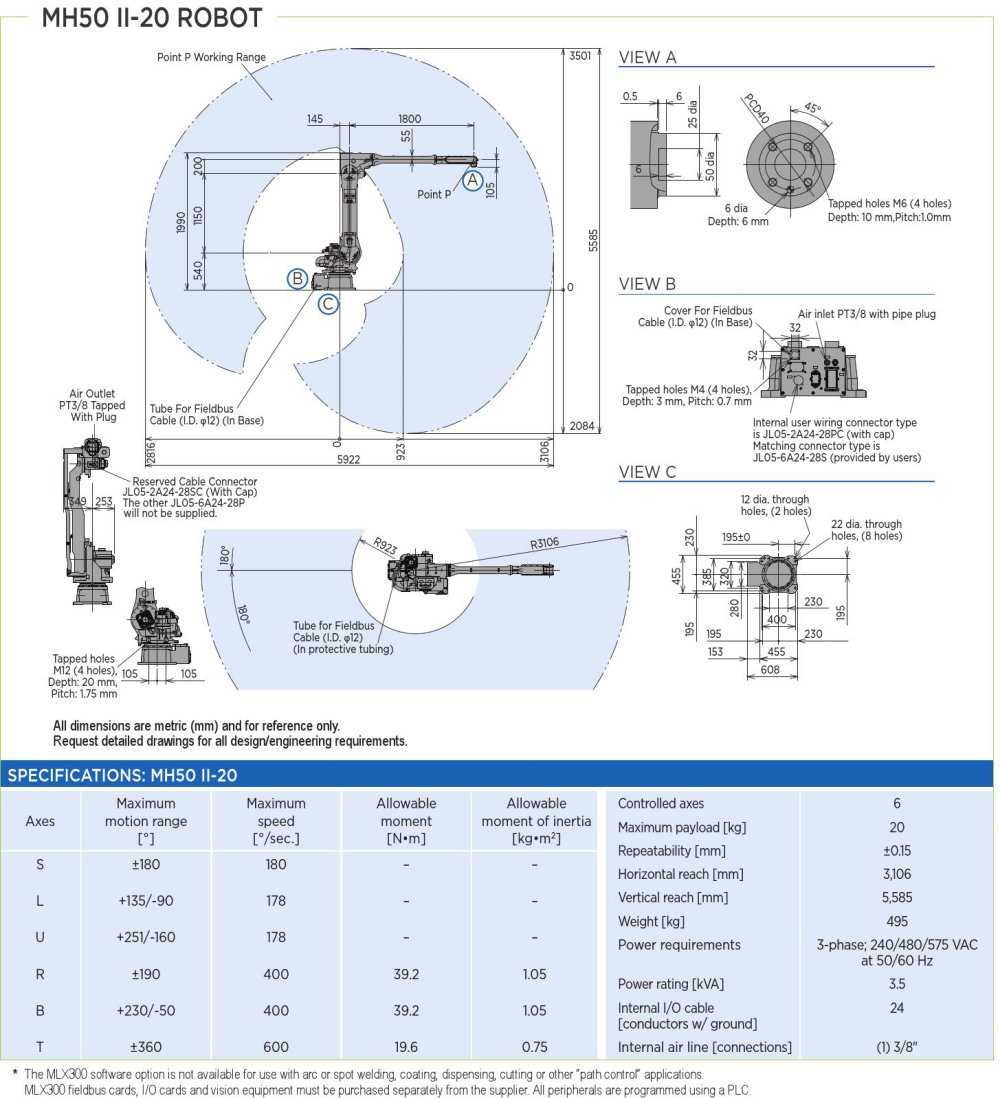

MH50 II-20 robot spec diagram
