Industrial Robots / Dual-Arm / SIA10D
Applications:
Assembly, Machine Tending, Material Handling, Part Transfer
10.0 kg
Payload
DX100
Controller
720 mm
Horizontal Reach
1203 mm
Vertical Reach
Motoman SIA10D industrial robot

Slim, 7-axis design optimizes space; provides “human-like” flexibility and range of motion, even in tight spaces. Mounts virtually anywhere in any orientation. Can be used in environments that are hazardous to humans


Download Datasheet  Get Pricing

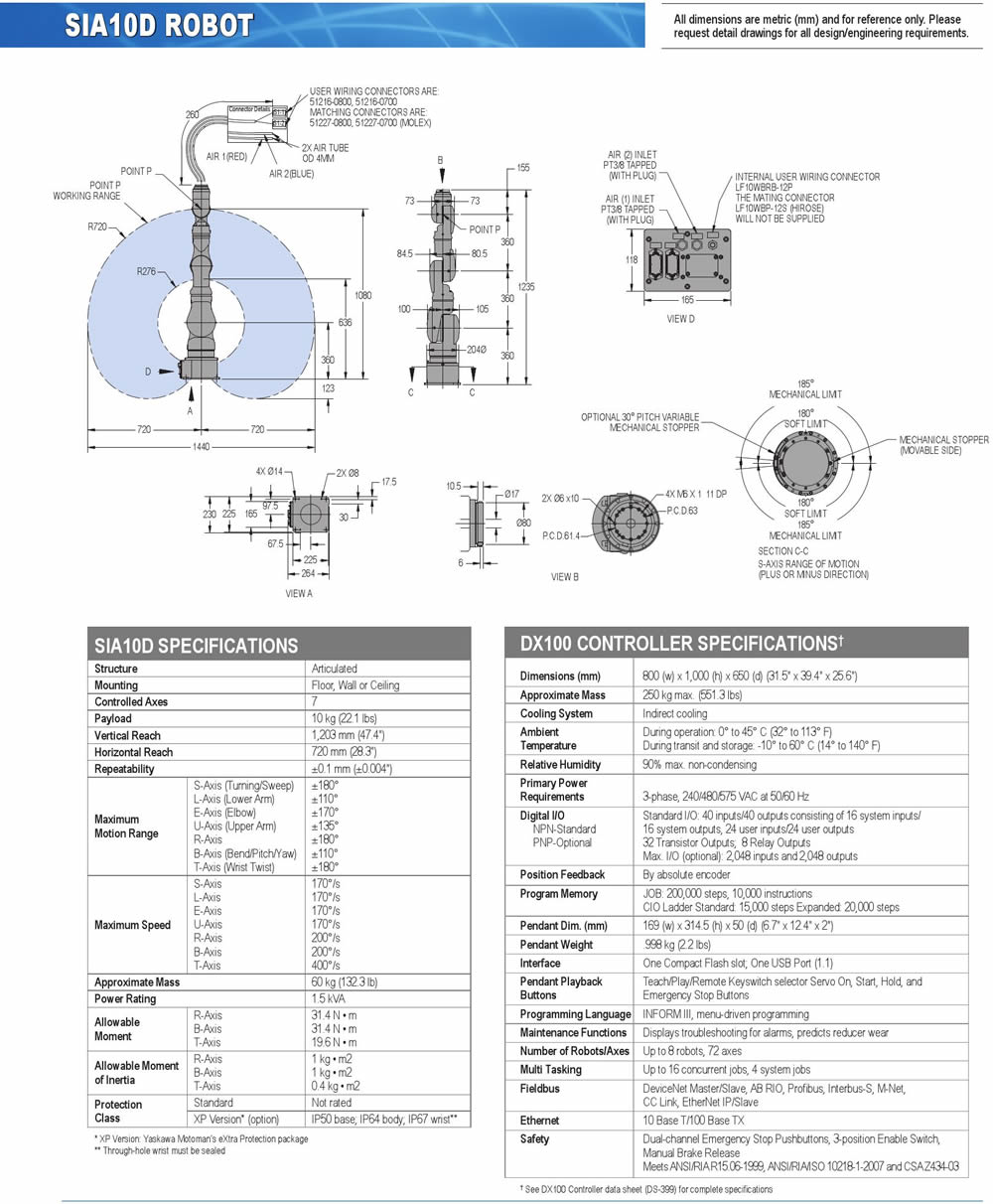

SIA10D robot spec diagram
