Industrial Robots / MPX Series / MPX1950
Applications:
Painting
7.0 kg
Payload
DX200
Controller
1450 mm
Horizontal Reach
2730 mm
Vertical Reach

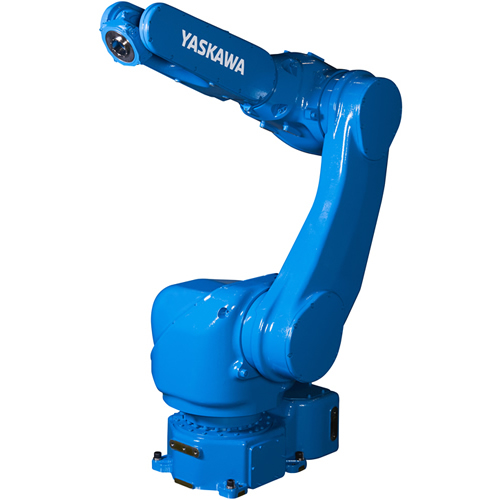

Motoman MPX1950 industrial robot

Optimized for painting small- to medium-sized parts and dispensing applications, the high speed six-axis MPX1950 robot creates a smooth, consistent finish with outstanding efficiency. A small footprint and slim arm design allow for minimum installation space, and a reduced interference envelope enables painting of workpieces closer to the robot.

Built with a hollow inline wrist, the robot’s 7 kg payload capacity is well-suited for mounting an array of spray guns and small bells. The MPX1950 is Factory Mutual approved for use in Class I, Div. 1 hazardous environments, and an optional location for the manipulator cable connection reduces interference with walls. A versatile robot design enables floor, wall or ceiling mounting for layout flexibility.

Controlled by the DX200-FM robot controller and an easy-to-use touch screen teach pendant, the MPX1950 is run with application-specific software and supports paint hardware configurations, while accommodating paint control instructions and supporting standard networks. An intrinsically safe pendant is optional.



Download Datasheet  Get Pricing




MPX1950 robot spec diagram
