Applications / Robotic Welding / Welding Cells / ArcWorld 50 Series

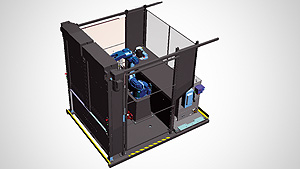

ArcWorld 50

Parts don't have to have lengthy arc on times to justify automation. Our ArcWorld® 50 Series condenses the quality of our popular pre-engineered weld workcells to allow you to efficiently automate your smaller parts on this incredibly dynamic and robust workcell. The fast automated door offers nearly instantaneous access to processed parts in a single- or dual-station configuration. Positioner options allow you to turn parts to reach weldments on all sides with perfect coordinated motion.

Highlights

Compact but Robust

Single or dual stations with automated roll-up doors are optimized for small parts up to 1650 mm or 775 mm with fast cycle times.

Ready to Weld

Pre-configured with any brand of welding equipment and integrated on a common base, our ArcWorld 50 and 52 are ready to work on your manufacturing floor.

Handle any Part

For complex parts with welds on multiple sides or round parts with horizontal rolled welds, the ArcWorld 50 and 52 'S' variants add a servo positioner that works like an extension of our robot with simplified coordinated motion programming.

Features

Workcell Design

  • Designed specifically for production of small- to medium-sized parts.

  • Available in single (AW50) or dual station (AW52) models with tables or servo positioners.

  • Complete workcell is mounted on common base with integrated cable management.

  • The robot controller and welding equipment are mounted on a docking base to simplify shipment and installation.

Equipment Included

  • AR1440 arc welding robot provides 1440 mm reach with high repeatability.

  • YRC1000 robot controller equipment with Universal Weldcom Interface.

  • Broad compatibility of welding power supply, torch and accessories.

  • Functional Safety Unit (FSU) ensures robot operation in areas clear of operator presence.

  • Powered roll-up door(s) improve operator ergonomics.

Workpiece Capacity

  • Tooling risers are provided for the fixed-station workcells. Dowel pins can be used for changeover between multiple parts/fixtures.

  • Single 1650 mm tabletop (AW50) or two 775 mm tabletops (AW52) with 685 mm depth are available as options.

  • Poistioner options of up to 185 kg payload to turn parts while welding.



Creating an ArcWorld

Check out how much time, effort and precision goes into making each ArcWorld.

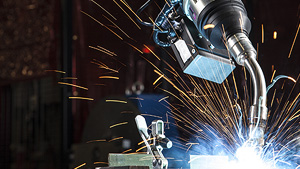

ArcWorld in Action

Watch how operators can remove and load parts in safety, while robots expertly weld.

Which ArcWorld?

Which ArcWorld is Right for You?

ArcWorlds reduce cost, engineering and delivery time.
Learn More >>


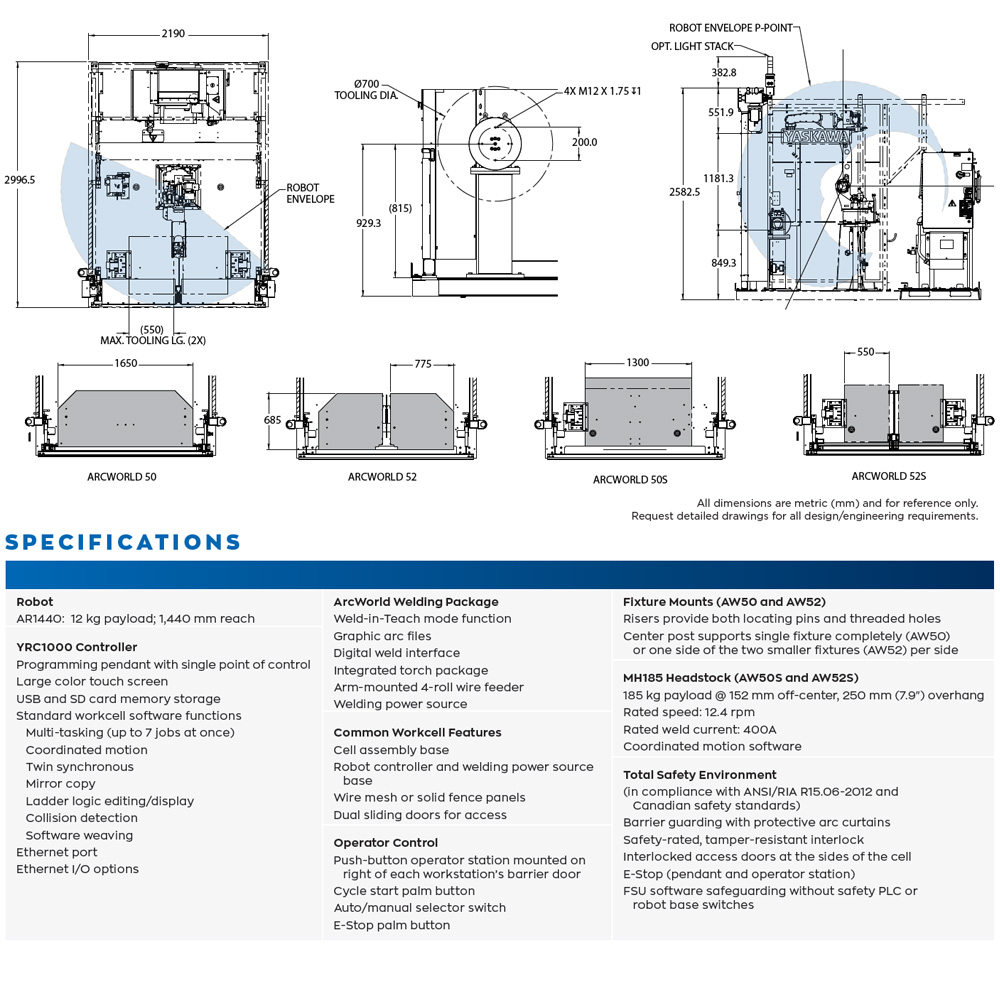

AW1000 spec diagram
