Rotating Turntables - External Axis Weld Positioners

Variable inertia turntables offer efficient indexing time for a wide range of payloads and inertia values
Customizable integer stations allow for 2/3/4/5/6/8/10 or more stations, ideal for welding, assembly, kitting, and other applications

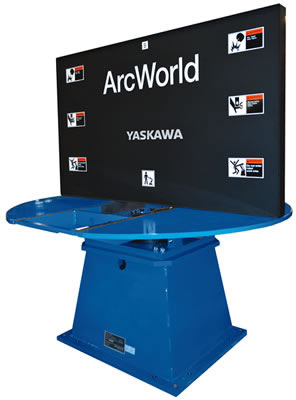

660kg payload available in low or medium inertia values for two-station indexing, as featured in our ArcWorld 1000 series with a 60” or 72” table, and features a metal arc screen divider to protect the operator from arc flash and robot movement
Ground brush kits offer up to 800 amps current rating for welding applications
Fixture plates can be added with tapped holes for customer tooling
Slip ring kits are available for fixtures and feature Dual Ethernet and air utilities
Hard stop kits are available for two station setups for improved repeatability and stability

	MSR-600L	MSR-660M	MSR-L	MSR-M	MSR-H	MSR-X
Rated Load Inertia (kg*m²)	450	1100	450	1100	2350	3650
180˚Sweep Time* (sec)	2.85	3.31	2.85	3.31	4.55	5.51
Rated Load (kgf)	660 per side		2860 total
Through Hole Diameter (mm/in)	120 / 4.7
Rated Weld Current (amps)	800
*Total time can be affected by application variables and motion profiles.

Estimated ranges for each model capacity:
