Industrial Robots / Arc Welding Robots / AR1440E
Applications:
Arc Welding
6.0 kg
Payload
YRC1000
Controller
1440 mm
Horizontal Reach
2487 mm
Vertical Reach
Motoman AR1440 industrial robot

Providing an impressive end-of-arm motion range, the extremely fast seven-axis AR1440E robot is ideal for arc welding applications where additional flexibility is needed for complex tooling or obstacle avoidance in tight areas. Unlike a six-axis robot, the AR1440E is built with a seventh axis between the second and third axes, allowing shortening or lengthening of the overall arm reach. A slim profile facilitates close proximity placement of robots for high-density layouts, and a contoured arm enables easy access to parts in confined spaces, avoiding potential interference with fixtures. Application flexibility is greatly improved via the wide wrist motion range, and a 50 mm-thru hole for torch cabling, hoses and sensor wires minimizes cable interference and wear.


Download Datasheet  Get Pricing

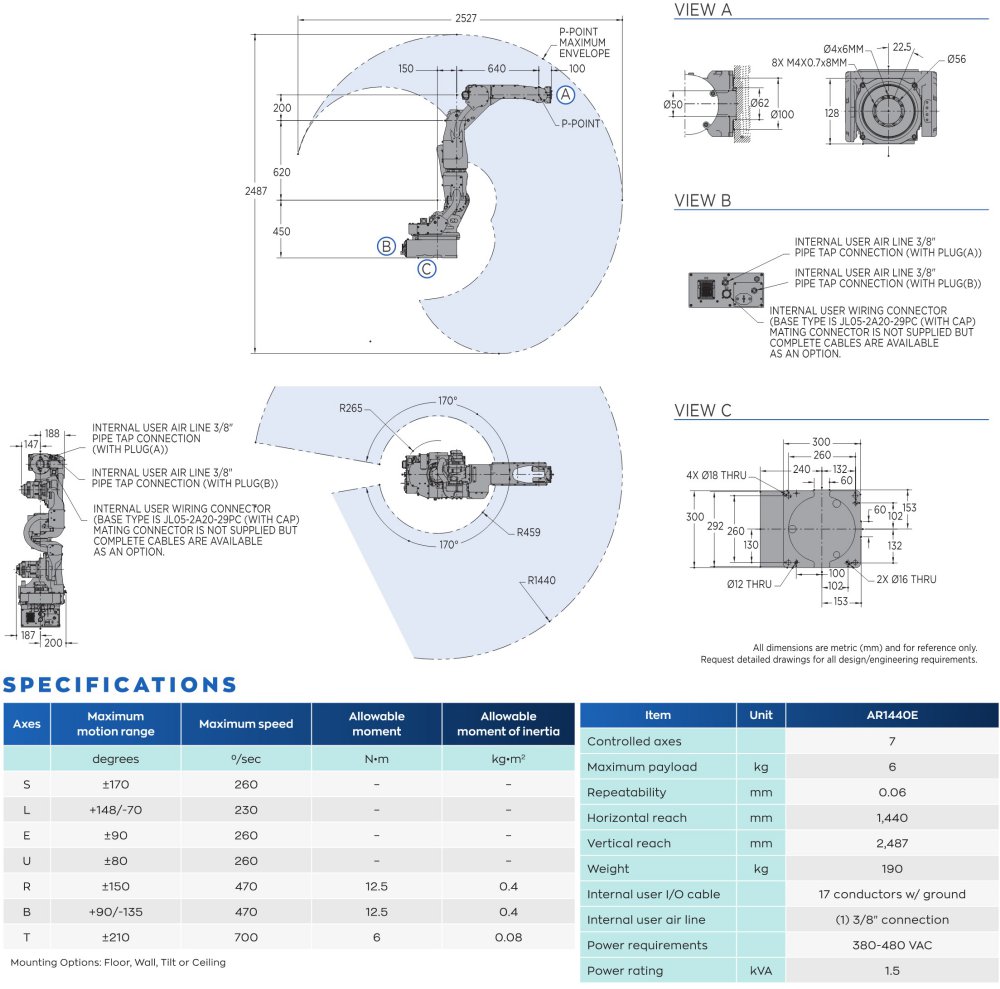

AR1440 robot spec diagram
