Industrial Robots / Dual-Arm / SDA10F
Applications:
Assembly, Machine Tending, Material Handling
10.0 kg
Payload
FS100
Controller
1970 mm
Horizontal Reach
1440 mm
Vertical Reach
Motoman SDA10F industrial robot

The SDA10F is a dual-arm, 15-axis robot with incredible dexterity, freedom of movement in a compact footprint. Both arms can work together dramatically simplifying end-of-arm tooling. Designed with patented servo actuators, all cables are routed through the arms. The FS100 is a powerful controller with unmatched open software architecture. Superior dexterity and best-in-class wrist characteristics make this slim, dual-arm robot ideally suited for assembly, part transfer, machine tending, packaging and other handling tasks that formerly could only be done by people.


Download Datasheet  Get Pricing

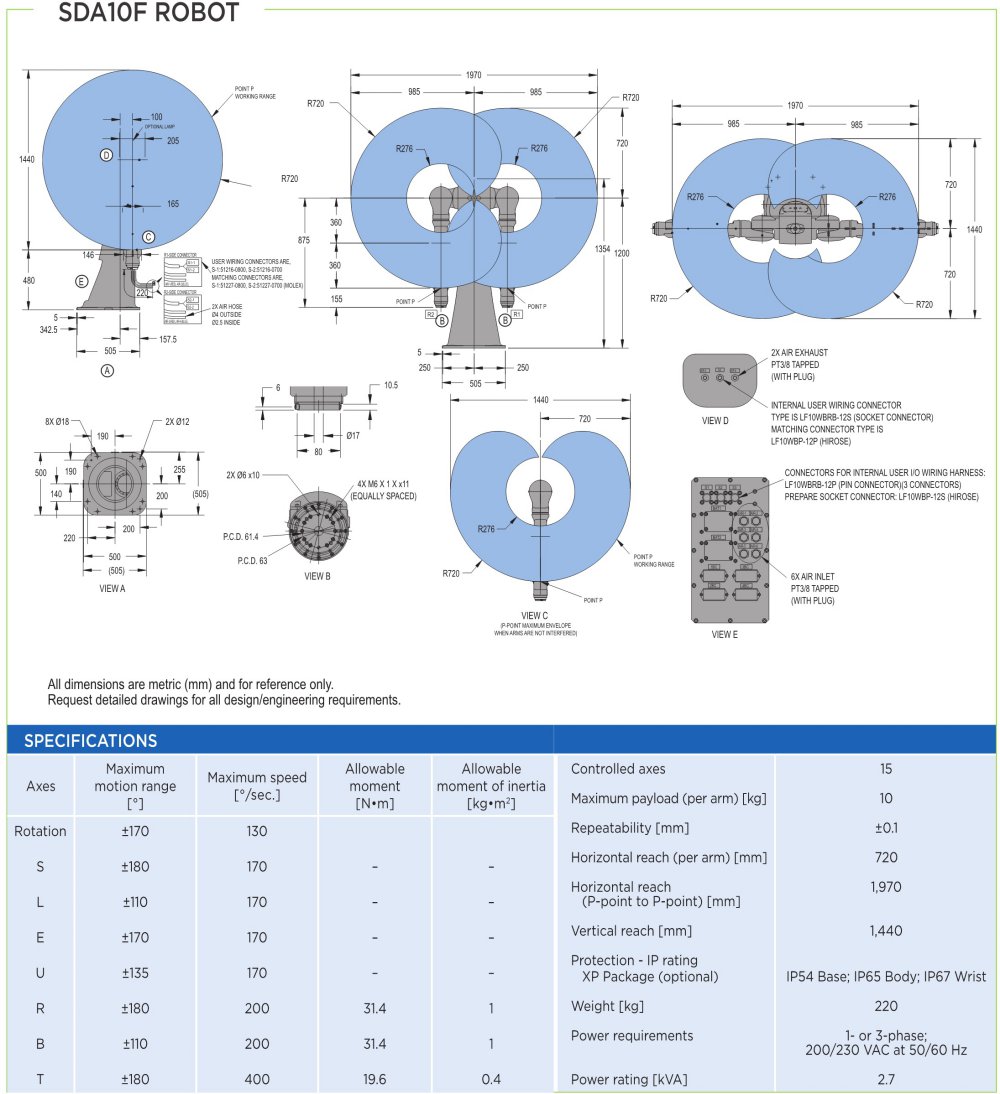

SDA10F robot spec diagram
