Industrial Robots / 7-Axis / SIA10F
Applications:
Assembly, Machine Tending, Material Handling, Part Transfer, Pick and Pack
10.0 kg
Payload
FS100
Controller
720 mm
Horizontal Reach
1203 mm
Vertical Reach
Motoman SIA10F industrial robot

With a 10kg payload, this agile robot opens up a wide range of industrial applications; ideal for assembly, injection molding, inspection, machine tending and a host of other operations. Seven-axis actuator-based design and best-in-class wrist performance characteristics provide amazing freedom of movement, coupled with ability to maneuver in very tight areas.


Download Datasheet  Get Pricing

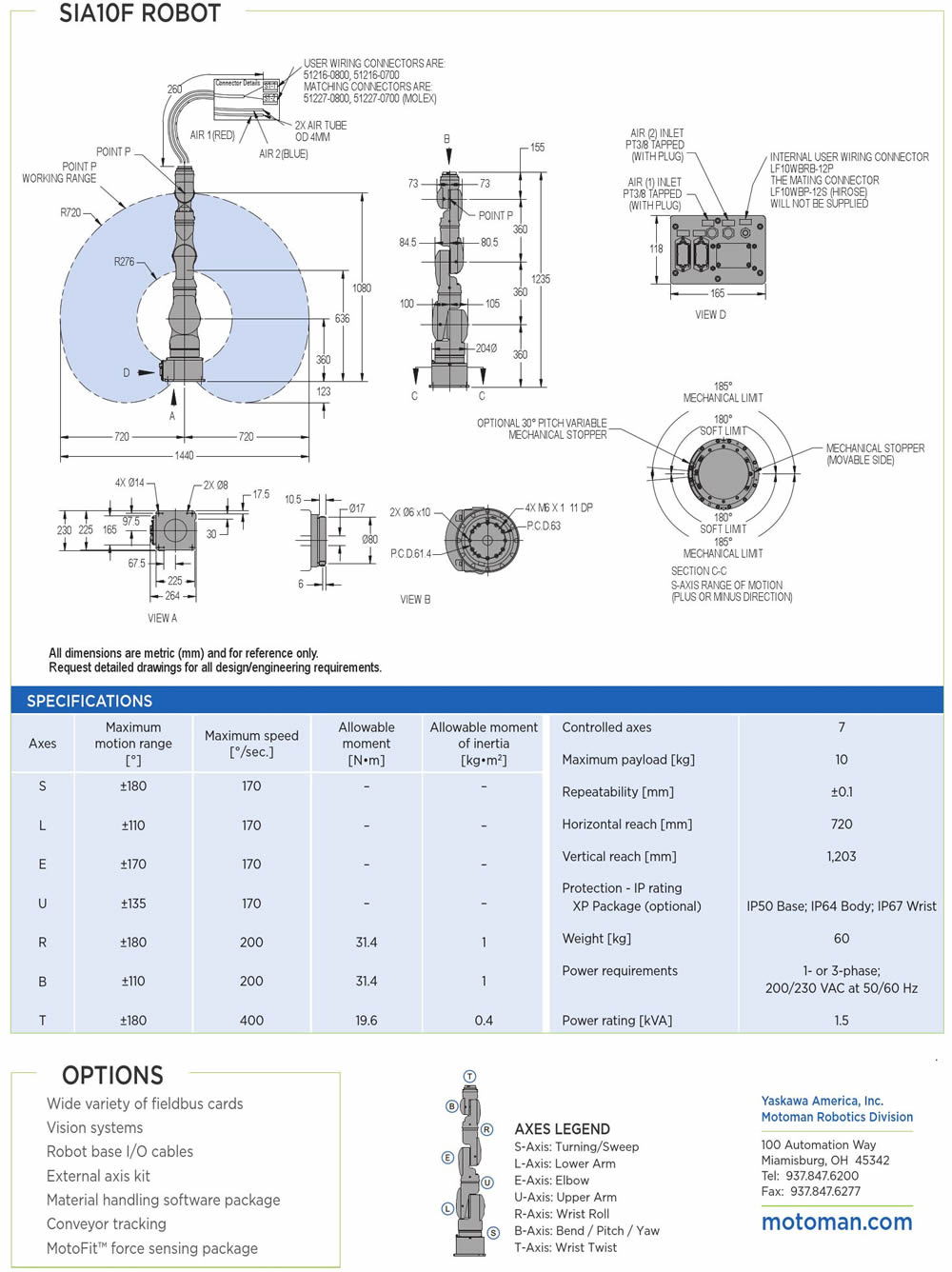

SIA10F robot spec diagram
