Industrial Robots / 7-Axis / SIA30D
Applications:
Machine Tending, Material Handling, Part Transfer, Pick and Pack
30.0 kg
Payload
DX100
Controller
1485 mm
Horizontal Reach
2597 mm
Vertical Reach
Motoman SIA30D industrial robot

Slim, 7-axis design optimizes space; provides “human-like” flexibility and range of motion, even in tight spaces. Mounts virtually anywhere in any orientation: Short axis lengths and extreme motion flexibility allow slim manipulator to be positioned out of normal working area (floor-, ceiling-, wall-, incline- or machine-mounted)

Slim, compact and powerful – robot can straighten vertically to take up a very small footprint and is only 365.5 mm wide at widest point.



Download Datasheet  Get Pricing

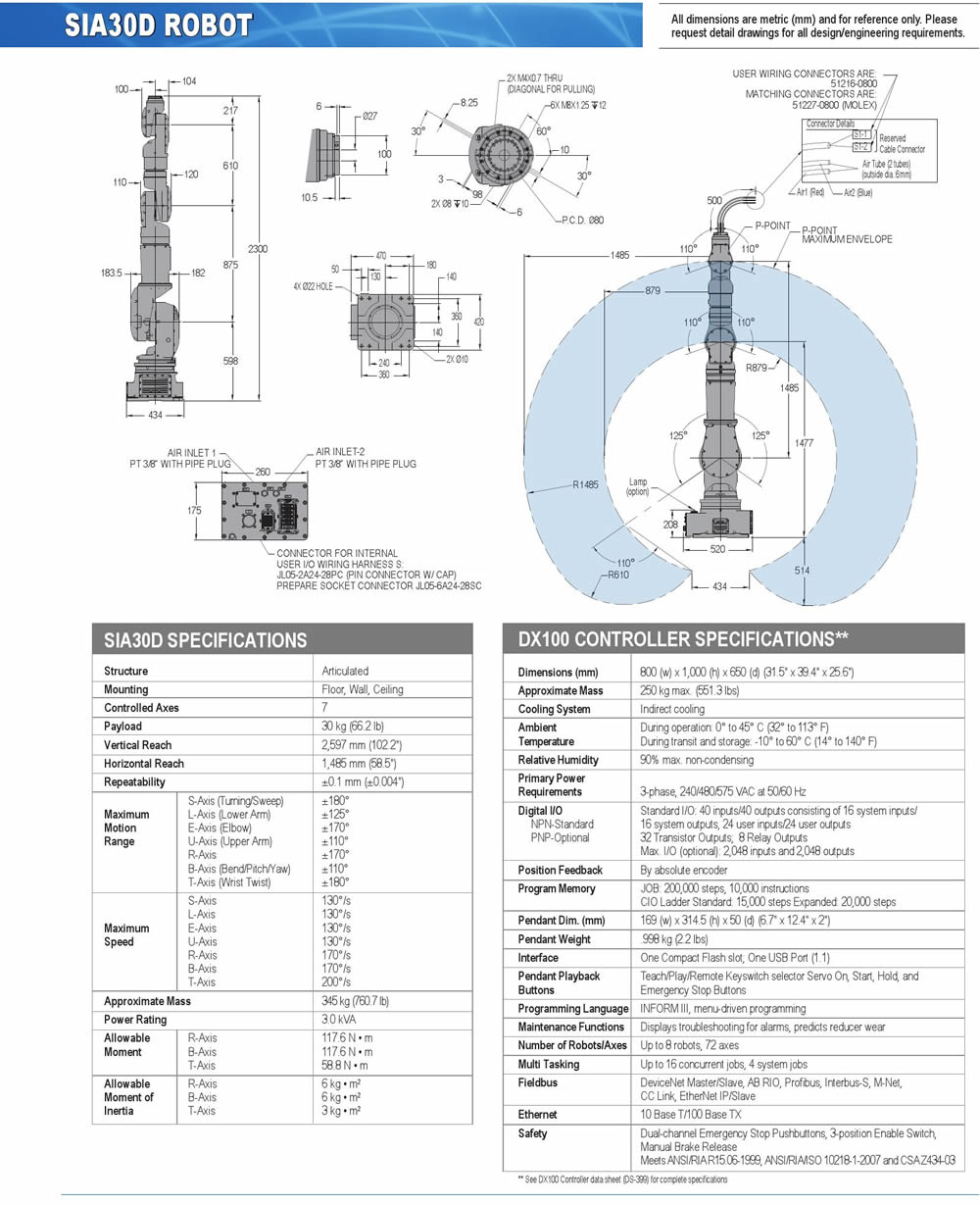

SIA30D robot spec diagram
