Industrial Robots / 7-Axis / SIA5D
Assembly, Machine Tending, Material Handling, Part Transfer, Pick and Pack
5.0 kg
559 mm
Horizontal Reach
1007 mm
Vertical Reach
Motoman SIA5D industrial robot

The SIA Series best-in-class wrist performance characteristics provides amazing freedom of movement. Its 7-axis actuator-based design and, coupled with ability to maneuver in very tight areas make this versatile robot ideal for a wide range of industrial applications: assembly, injection molding, inspection, machine tending and a host of other operations.

Download Datasheet  Get Pricing

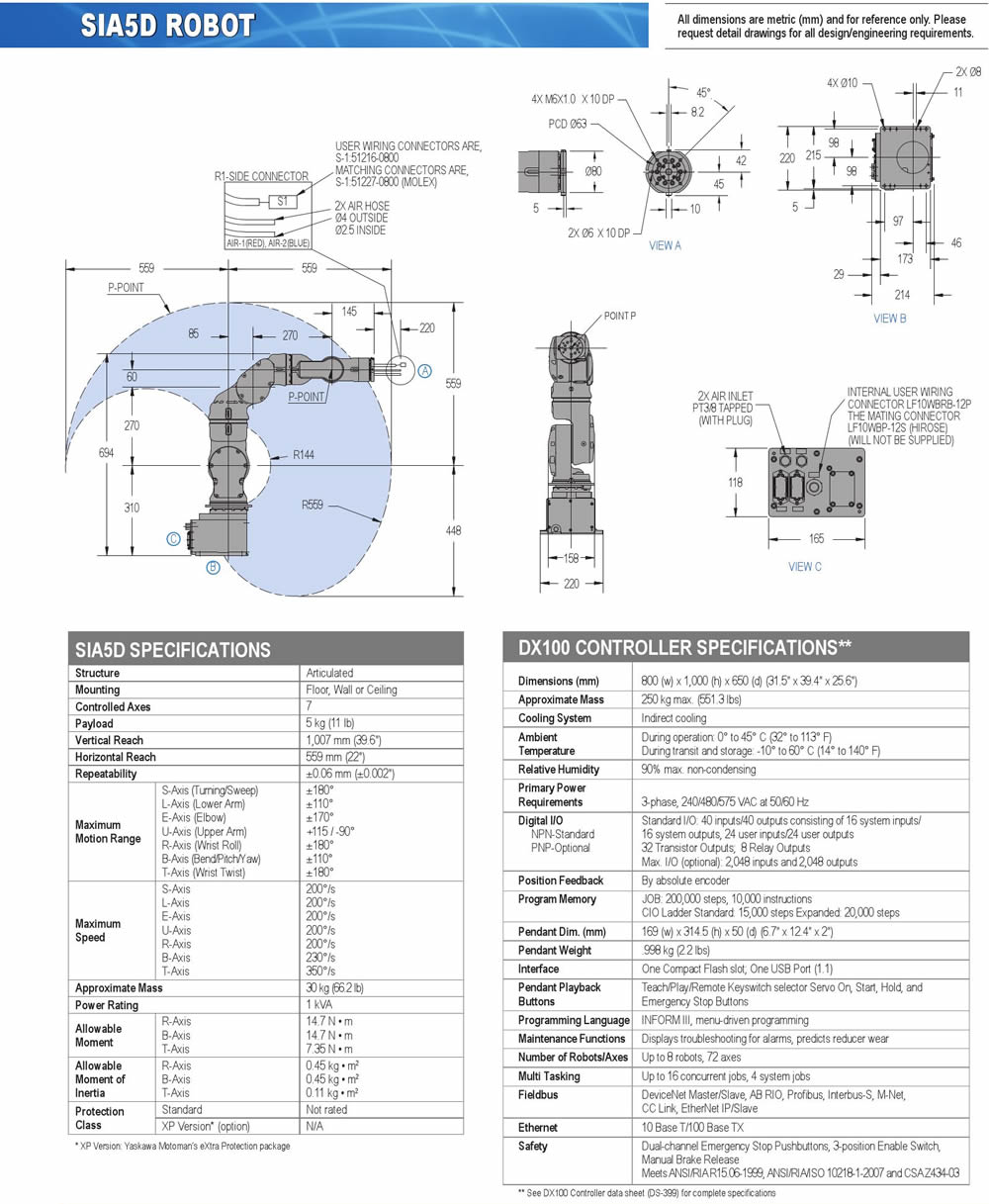

SIA5D robot spec diagram
