Industrial Robots / Dual-Arm / SIA5F
Applications:
Assembly, Machine Tending, Material Handling, Part Transfer, Pick and Pack
5.0 kg
Payload
FS100
Controller
559 mm
Horizontal Reach
1007 mm
Vertical Reach
Motoman SIA5F industrial robot

Agile, versatile robot opens up a wide range of industrial applications to robots; ideal for assembly, injection molding, inspection, machine tending and a host of other operations. 7-axis actuator-based design and best-in-class wrist performance characteristics provide amazing freedom of movement, coupled with ability to maneuver in very tight areas


Download Datasheet  Get Pricing

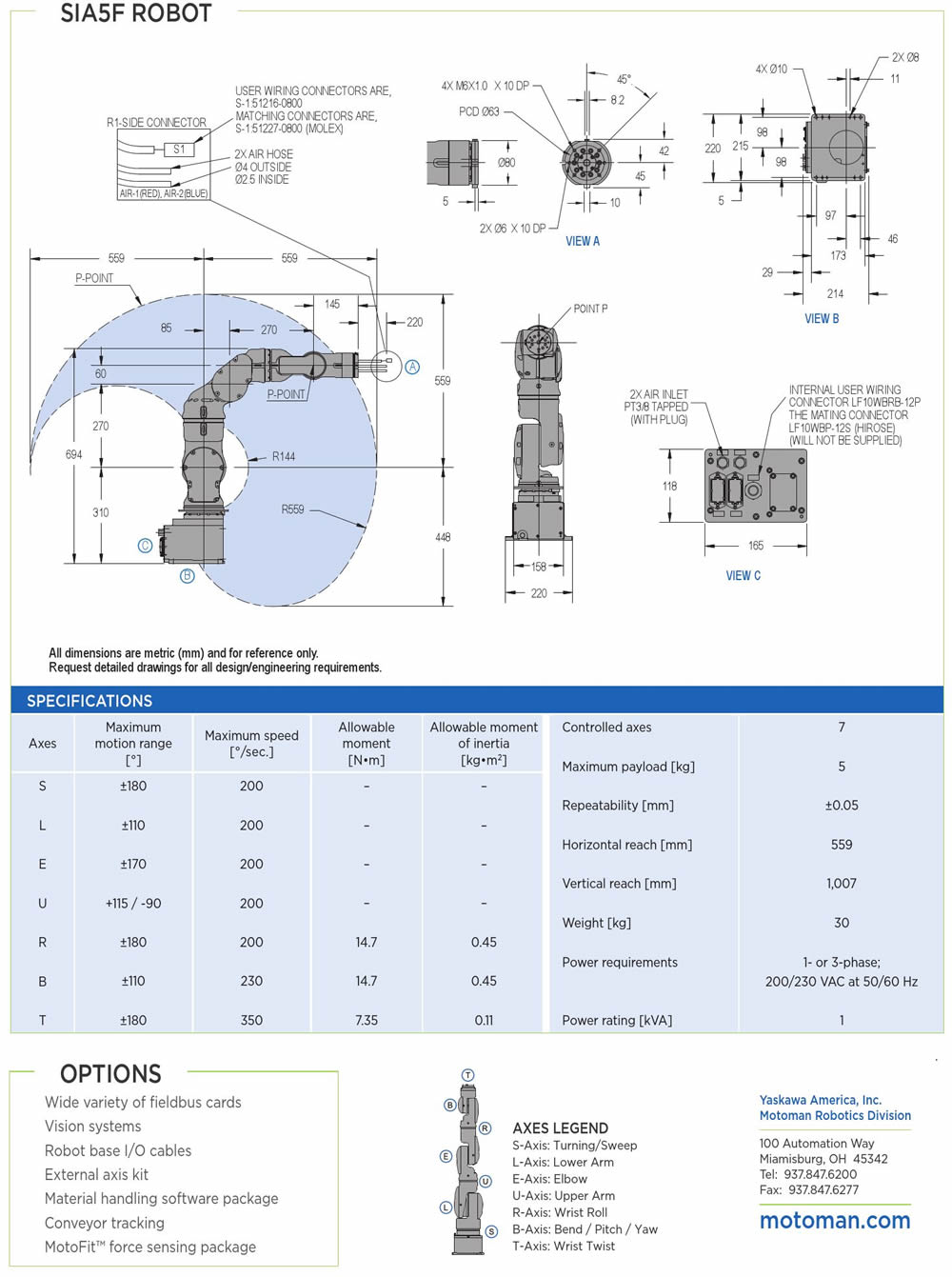

SIA5F robot spec diagram
