ArcWorld LC

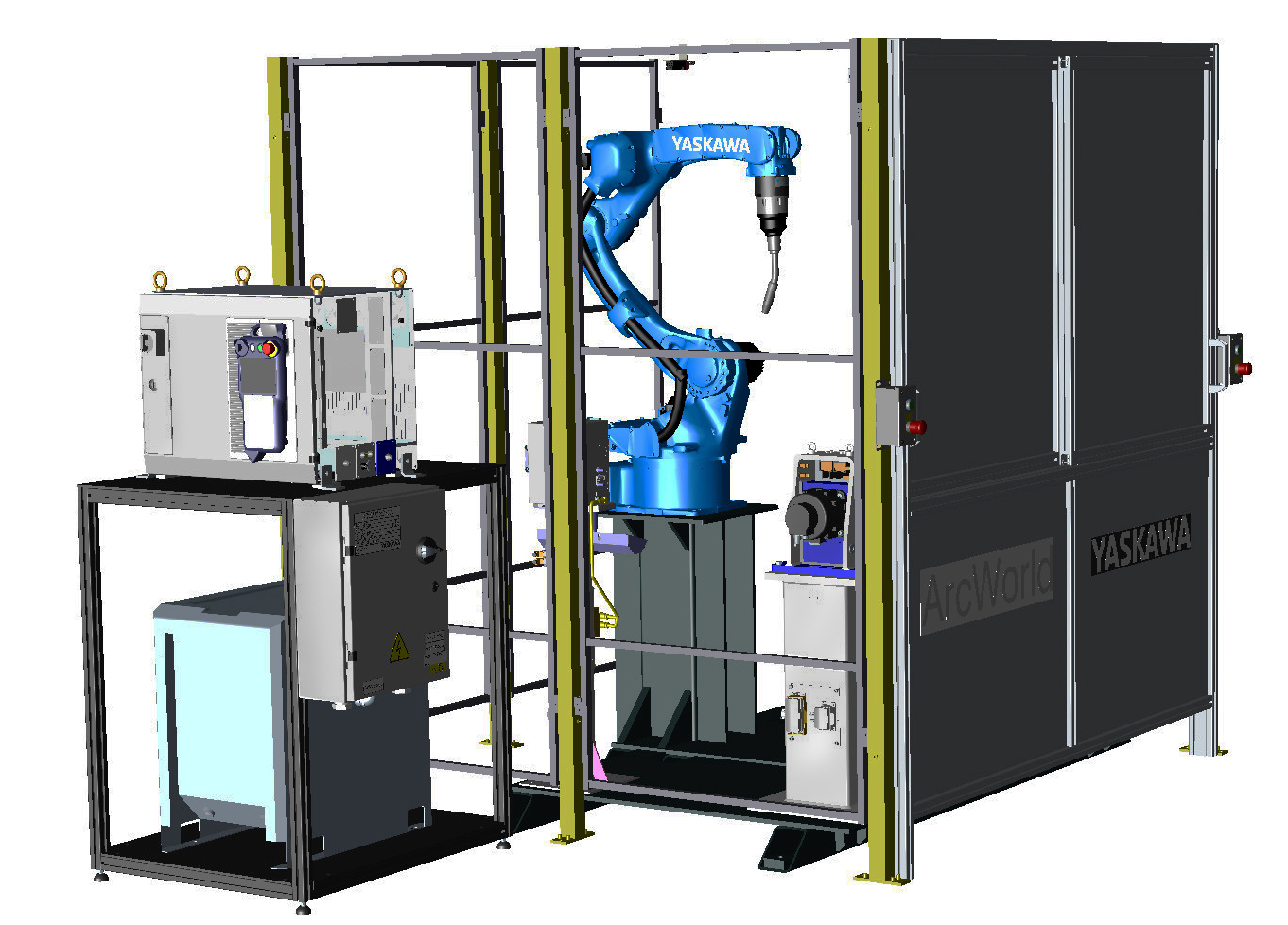

When automation is needed to mitigate labor shortages and quality concerns, our ArcWorld® LC (LiteCell) is a perfect first step into robotic welding. This workcell features all of the pre-engineered safety and efficiency of our ArcWorlds, but includes a few cost-saving elements to ensure a quick payback in our lowest price cell.

Highlights

Simple and Safe

Safeguarded manual workstations with easy-to-use operator stations.

Lean Manufacturing

Minimize waste while increasing efficiency and quality by adopting automation into your current workflow.

Reliable and Proven

Over 30 years of automation experience and world-class customer service come included with every workcell!

Features

Workcell Design

  • Flexible single or dual workstation arc welding workcell.

  • Protective fencing with interlocked door mates up perfectly with the robot and workstation base for installation directly to the floor.

  • The robot controller, welding equipment and power disconnect are mounted as an assembly to simplify installation.

  • Manual swinging (single station) or sliding (dual station) doors provide safe access to workstations.

Equipment Included

  • Motoman® AR1440 arc welding robot welds parts with efficiency and consistent high quality.

  • Choice of Miller® Auto-Continuum 350 or Lincoln Electric Power Wave® R450 robotic power supply.

  • Welding processes are accessed by Yaskawa's Universal Weldcom Interface directly from the robot programming pendant.

  • Enhanced safeguarding, including Functional Safety Unit (FSU) is fully compliant with latest robot safety standard (ANSI/RIA R15.06-2012).

Workpiece Capacity

  • The single workstation is ideal for wider parts up to 1829 mm and is available with a fixed tooling table or a servo-driven MH185 headstock for parts up to 1450 mm that need to be repositioned during processing.

  • The dual workstation configuration with fixed tooling tables for up to 893 mm part width or with two MH185 headstocks for parts up to 500 mm that need repositioned.

  • Tooling can be quickly changed. Each workstation can be tooled for different parts or be used for sequential operations.



Creating an ArcWorld

Check out how much time, effort and precision goes into making each ArcWorld.

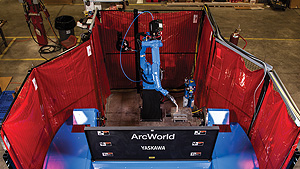

ArcWorld in Action

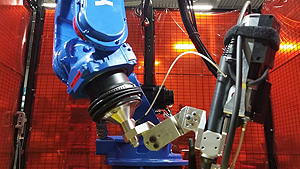

Watch how operators can remove and load parts in safety, while robots expertly weld.

Which ArcWorld?

Which ArcWorld is Right for You?

ArcWorlds reduce cost, engineering and delivery time.
Learn More >>

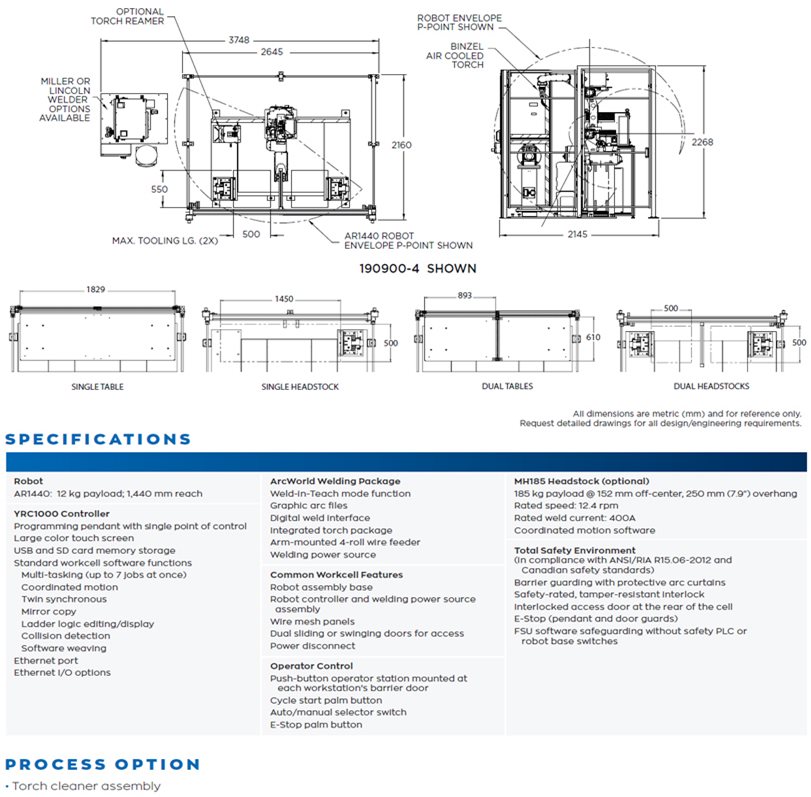

ArcWorld LC spec diagram
