Industrial Robots / GP Series / GP225
Applications:
Die Cast, Machine Tending, Material Removal, Material Cutting/Trimming, Material Handling, Part Transfer, Press Tending
225.0 kg
Payload
YRC1000
Controller
2702 mm
Horizontal Reach
3393 mm
Vertical Reach
Motoman GP225 industrial robot

Engineered with high moment and inertia ratings to handle high payloads for heavy part processing, the fast and precise six-axis GP225 robot enables increased productivity for a variety of applications. While exceptionally fast axis speeds and acceleration capabilities increase production output, a streamlined upper arm with a slim wrist profile facilitates easier reach into tight spaces, optimizing application flexibility. A reduced interference design allows high-density robot placement in workcells for the best use of floorspace, making the efficient and robust GP225 the ideal choice for machine tending, material handling and press tending applications.


Download Datasheet  Get Pricing

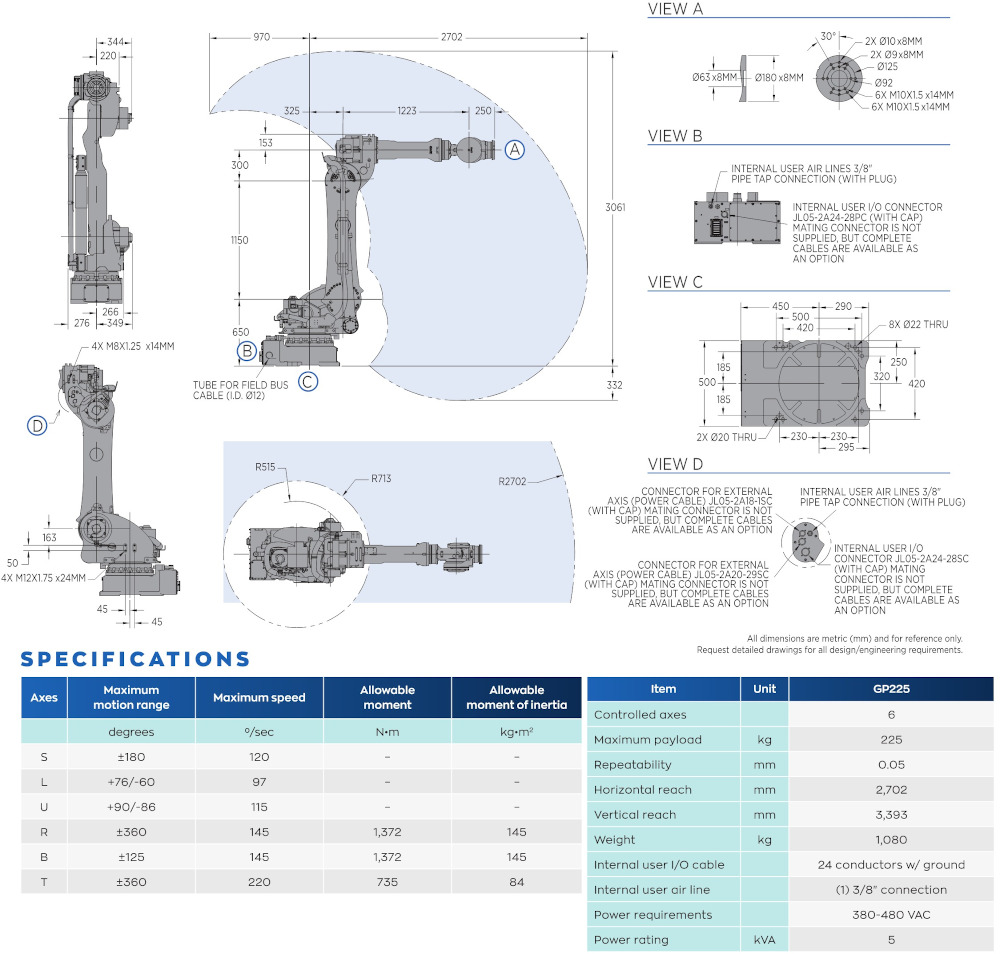

GP225 robot spec diagram
