Industrial Robots / GP Series / GP35L
Applications:
Dispensing, Machine Tending, Material Removal, Material Handling, Part Transfer, Press Tending
35.0 kg
Payload
YRC1000
Controller
2538 mm
Horizontal Reach
4449 mm
Vertical Reach
Motoman GP35L industrial robot

The exceptionally powerful and efficient GP35L robot increases productivity for a wide range of applications. While fast axis speeds and acceleration capabilities reduce cycle time, high moments and inertia ratings enable the handling of large and heavy payloads. A reduced interference design allows for high-density robot placement, and a streamlined upper arm gives easy access to parts in confined areas. An extended reach optimizes the robot range, and a wide wrist motion removes the chance for interference for improved application flexibility. Multiple mounting locations for tooling and sensors facilitate easy integration for unique project needs.

Download Datasheet  Get Pricing

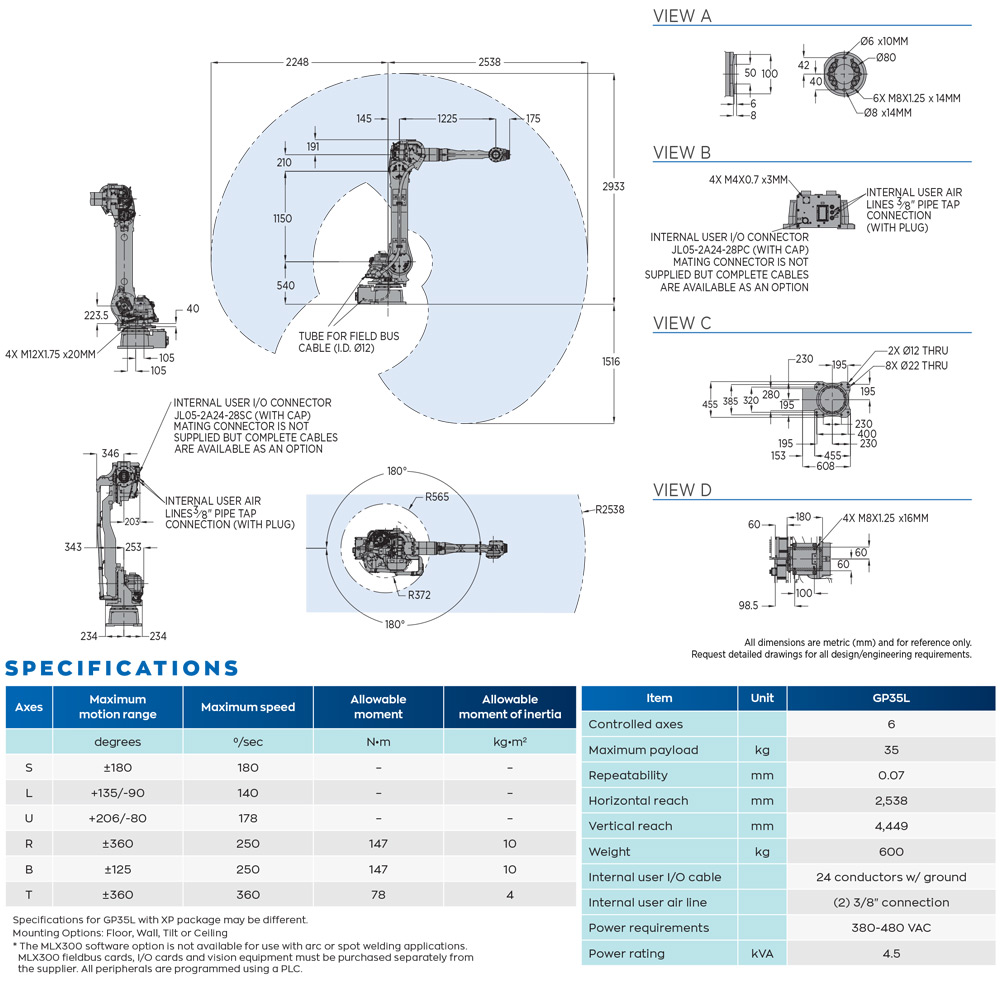

GP35L robot spec diagram
