Industrial Robots / GP Series / GP600
Applications:
Dispensing, Machine Tending, Material Removal, Material Cutting/Trimming, Material Handling, Part Transfer, Press Tending, IP65-67
600.0 kg
Payload
YRC1000
Controller
2942 mm
Horizontal Reach
2898 mm
Vertical Reach
Motoman GP600 industrial robot

Capable of fulfilling a wide variety of project needs, the GP600 is ideal for heavy-payload applications. While a large work envelope and high moment of inertia ratings accommodate a large selection of heavy parts, fast axis speeds and acceleration capabilities decrease cycle time and optimize production output. A streamlined upper arm provides easy access to parts in confined spaces, and a reduced interference design enables the robot to be placed closer to machines and fixtures, optimizing valuable floorspace. Designed with parallel-link construction, the GP600 offers high-speed, smooth arm rotation while providing stable and powerful performance.

Download Datasheet  Get Pricing

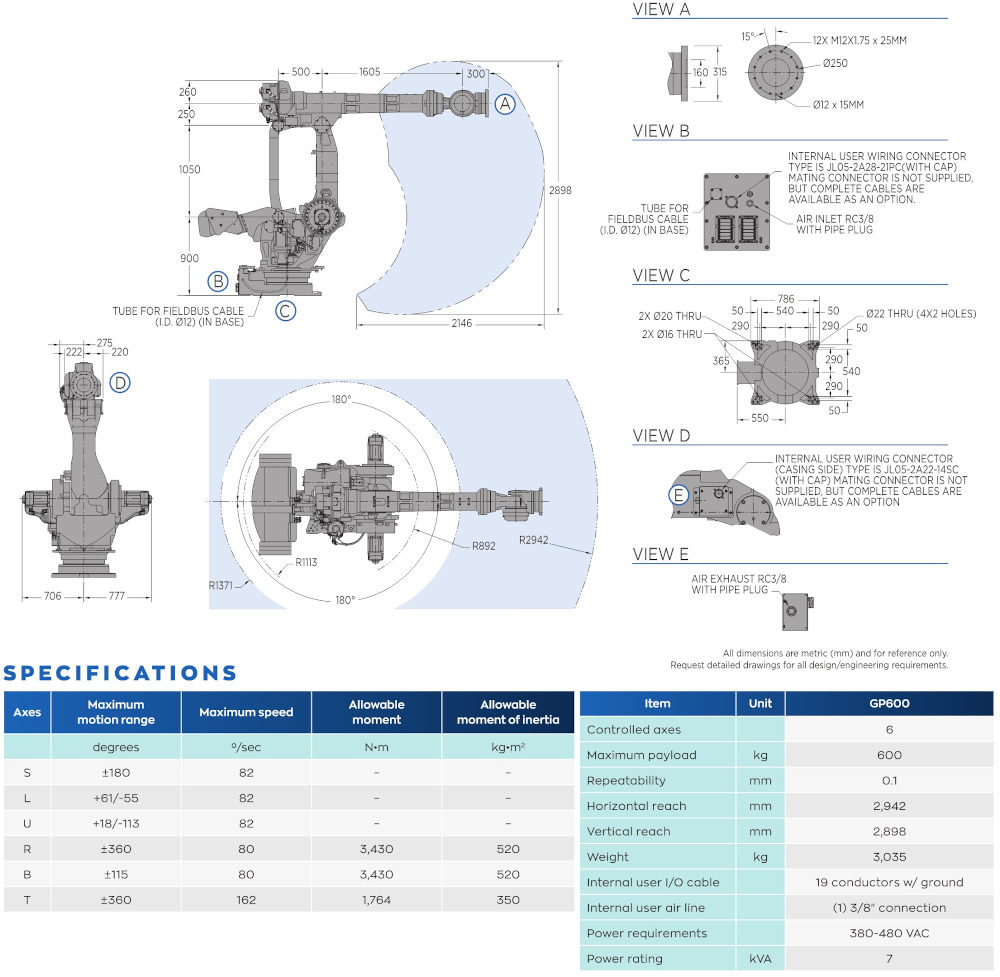

GP600 robot spec diagram
