Industrial Robots / GP Series / GP8L
Applications:
Assembly, Dispensing, Material Handling, Part Transfer, Pick and Pack
8.0 kg
Payload
YRC1000
Controller
1636 mm
Horizontal Reach
2894 mm
Vertical Reach

Extremely fast and flexible, the space-efficient GP8L robot optimizes throughput in tight production spaces. Ideal for logistics processes, this six-axis robot is well-suited for high-speed bin picking, induction and packaging tasks. Applications for assembly, dispensing, material handling and machine tending are also expertly supported. A long reach, reduced interference design combined with a narrow wrist allows access to parts in tight spaces and enables close proximity placement of robots for high-density layouts, while a wide wrist motion range provides a broad working envelope. Fast axis speeds and acceleration capabilities reduce cycle time for increased production output. Engineered for easy installation, operation and maintenance, the GP8L offers an IP54 rating in all axes and multiple mounting locations, as well as other convenient options for optimal implementation.

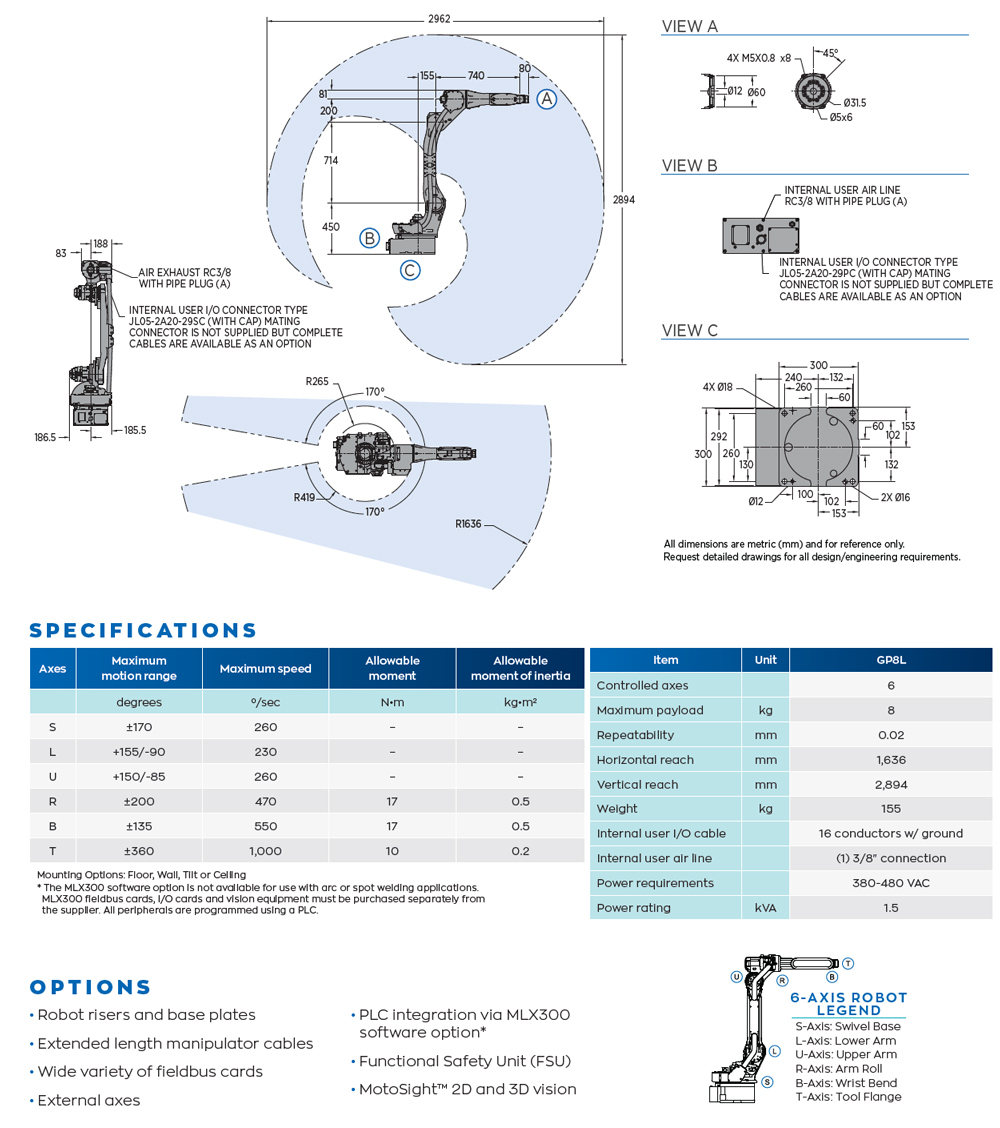

GP8L robot spec diagram

Downloads

Terms of Use and Copyright Notice

This content is freely available as a service to Yaskawa customers to assist in the operation of Yaskawa Motoman robots, related equipment and software. All content is copyrighted property of Yaskawa and may not be sold or redistributed in any way. You are welcome to copy these documents to your computer or mobile device for easy access but you may not copy them to another website, blog, cloud storage site or any other means of storing or distributing online content.

All downloading activity is logged. Downloading content from this page indicates that you understand and agree with the above terms of use.

Please complete the form below to access the media download area.

*
*
*
*
*
Are You A Current Yaskawa Motoman Customer?
Terms of Use *
*
Enter security code:
 Security code

GP8L Programming Options

GP8L - Smart Pendant

Intuitive programming and operation using the Smart Pendant make this the optimal combination of capability and simplicity.



GP8L - Standard Pendant

The advanced programming capability and powerful controller make this robot option ideal for high-performance and more complex tasks.
