Industrial Robots / GP Series / GP7
Applications:
Assembly, Material Handling, Part Transfer, Pick and Pack, Pick and Place, IP65-67
7.0 kg
Payload
YRC1000
Controller
927 mm
Horizontal Reach
1693 mm
Vertical Reach

Ideal for high-speed assembly and handling applications, the GP7 robot is fast, compact and efficient. Offering the highest payload, fastest speed and highest wrist allowable moment in its class, this robot is controlled with the YRC1000 controller and can be programmed with the lightweight standard teach pendant or the easy-to-use touchscreen Smart Pendant.

The GP-series robots offer improved acceleration/deceleration control for all robot positions resulting in overall improved productivity. The small footprint, slim arm design allows for minimum installation space and minimizes interference with peripheral devices. This enables the GP-series robots to be placed in close proximity to workpieces and other robots to create flexible, high-density layouts. Installation is quick and efficient. A single cable is all that is needed to connect the manipulator to the controller, resulting in easy setup and reduced expenses for maintenance and spare parts inventory.

The GP7 robot is compatible with the YRC1000 Controller or the YRC1000micro Controller as well as the standard teach pendant or the Smart Pendant.


GP7 robot spec diagram

Downloads

Terms of Use and Copyright Notice


These manuals are freely available as a service to Yaskawa customers to assist in the operation of Motoman robots, related equipment and software. These manuals are copyrighted property of Yaskawa and may not be sold or redistributed in any way. You are welcome to copy these documents to your computer or mobile device for easy access but you may not copy the PDF files to another website, blog, cloud storage site or any other means of storing or distributing online content.

All downloading activity is logged. Downloading any manual from this page indicates that you understand and agree with the above terms of use.

Please complete the form below to access the media download area.

*
*
*
*
*
Are You A Current Yaskawa Motoman Customer?
Terms of Use *

GP7 Programming Options

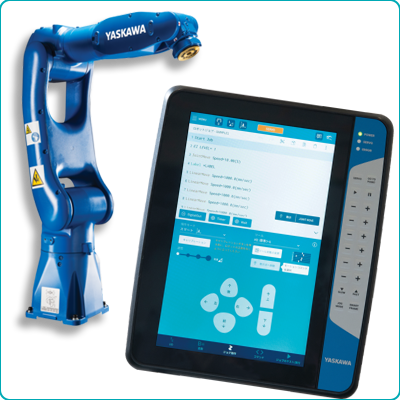

GP7 - Smart Pendant

Intuitive programming and operation using the Smart Pendant make this the optimal combination of speed, safety and simplicity.



GP7 - Standard Pendant

The advanced programming capability and powerful controller make this robot option ideal for high-performance and more complex tasks.


Unsure which option is best for your application?
